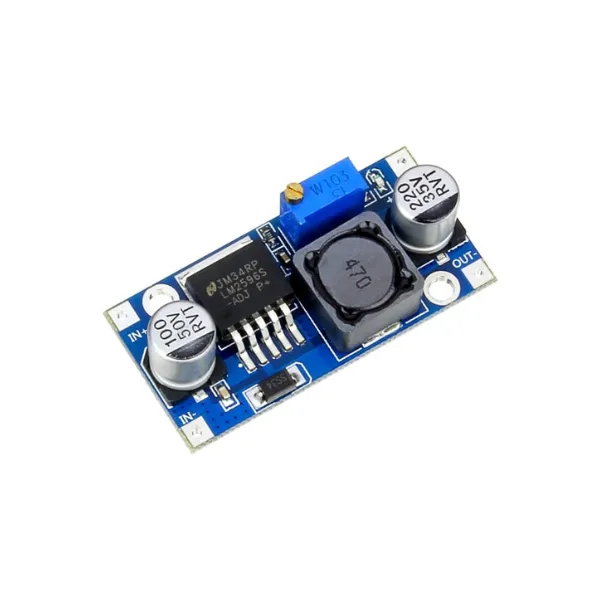

LM2596-3Amp- Step Down Buck Regulator

Features Of LM2596 DC-DC Adjustable Buck Converter Step Down Module Power Supply:

• Non-isolated step-down (BUCK) switching regulator.
• Short circuit protection: Current limiting, self-recovery
• Potentiometer adjustment direction
• Non-synchronous rectification

Specifications of LM2596 3A Adjustable Voltage Regulator Buck Module:

1. Model name: DC-DC LM2596S buck module
2. Input voltage:3.2V~46V (recommended for use in 40V)
3. Output voltage:1.25V~35V
4. Output current:3A (maximum)
5. Conversion efficiency:92% (highest)
6. Output ripple:<30mV
7. Switching frequency:65KHz
8. Working temperature:-45 ~ +85
9. Dimension:21mm * 43mm * 14mm (length * width * height)
